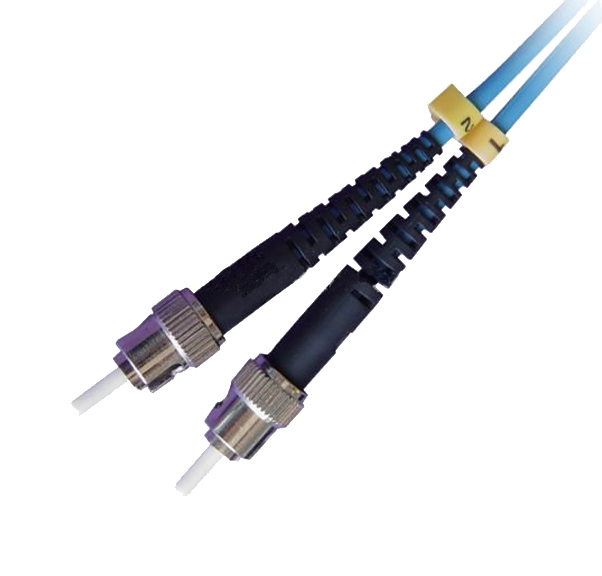

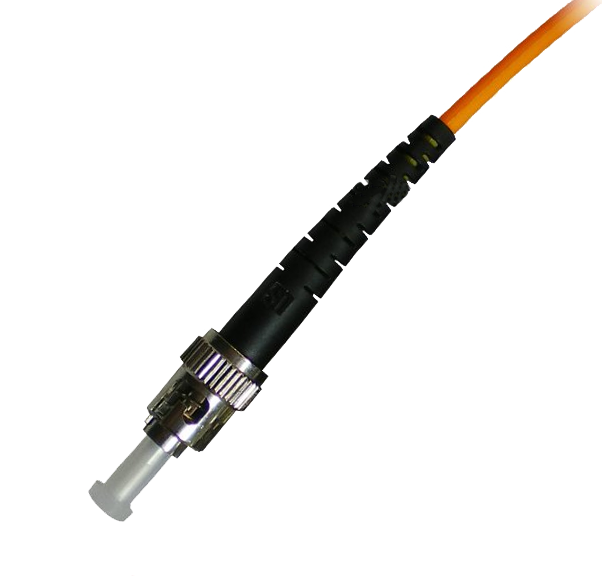

Fiber optic patch cords suited for equipment jumper cable, cross connects, and work area connections. All patch cords are manufactured using OFNR riser grade cable and are 100% factory tested to ensure performance to TIA/EIA-568-B-3 standards. ST/ST, SC/SC and hybrid ST/SC Patch Cords are available in both multimode (62.5/125µm and 50/125µm) and single mode cable-types, in duplex and simplex versions.
l Good durability
l Good exchangeability
l High temperature stability
l Low insertion loss and back reflection loss
l Superior Quality Standard PC/UPC/APC Polishing
l Standard: Telcordia GR-326-CORE, TIA/EIA and IEC
Descriptions | SM(PC) | SM(UPC) | SM(APC) | MM(PC) | |
Insertion loss | <0.3dB | ≤0.2dB | <0.3dB | <0.3dB | |
Return loss | ≥50dB | ≥50dB | ≥65dB | ≥35dB | |
Repeatability | ≤0.1 | ≤0.1 | ≤0.1 | ≤0.1 | |
Durability | <0.1dB typical change,1000 mating | ||||
Interchangeability | ≤0.2dB | ||||
Vibration | ≤0.2dB | ||||
Operating Temperature | - 20°C ~ + 70°C | ||||
Storage Temperature | - 40°C ~ + 80°C | ||||
Cable Diameter | 3.0mm, 2.0mm, 0.9mm | ||||
TBC | — | ST | / | PC | — | ST | / | PC | / | SM | — | SX | / | 2.0 | — | 3M | |
0 | 1 | 2 | 3 | 2 | 4 | 5 | 6 | 7 | |||||||||
0 | Brand name | ||||||||||||||||
1 | Connector#1 LC,SC,FC,ST,E2000,DIN,D4,MU,MTRJ,etc. | ||||||||||||||||
2 | Lapping Way PC&APC (For MTRJ, F=Female, M=Male) | ||||||||||||||||
3 | Connector#2 LC,SC,FC,ST,E2000,DIN,D4,MU,MTRJ,Pigtail,etc. | ||||||||||||||||
4 | Cable Type SM(9/125μm) ,MM(50/125μm & 62.5/125μm) | ||||||||||||||||
5 | Fiber Number SX(Simplex) or DX(Duplex) | ||||||||||||||||
6 | Cable Diameter 2.0=Ø2.0mm, 3.0=Ø3.0mm, 0.9=Ø0.9mm, etc. | ||||||||||||||||
7 | Cable Length 3m(Length in meter) | ||||||||||||||||
l Gigabit Ethernet
l Active device termination
l Telecommunication networks
l Video; Multimedia; CATV
l Premise installations
l Local area networks
